A, overview
CSZ - 300 bulk carrier system from storehouse side will powder material of automatic conveyer to bulk ship equipment. Has the material level control sensitive, discharging fluid small resistance, etc.
CSZ - 300 bulk carrier system can also be used to other industries, and building system, metallurgy, coal chemical branch powder materials shipment.

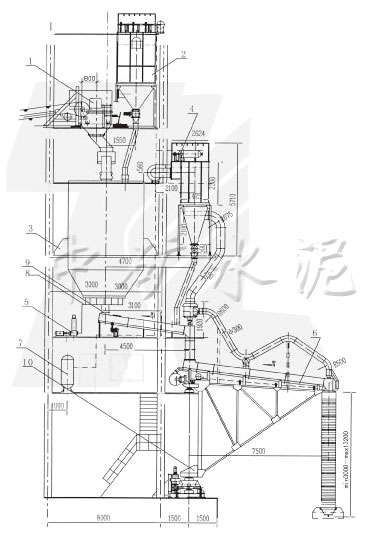

Second, the structure schematic drawing
1 CSZ - 01 library top feeding system
2 CSZ - 02 library top dust collecting system
3 CSZ - 03 measurement system
4 CSZ - 04 Marine dust collector system
5 CSZ - 05 ROM Bates fan
6 CSZ - 06 Marine bulk machine
7 CSZ - 07 compressed air piping system
8 CSZ - 08 ROM Bates fan to warehouse piping
9 CSZ - 09 unloading system
10 CSZ - 10 rotating mechanism
